Materials

Aluminium 6082

Overview

6082 aluminium alloy is an alloy in the wrought aluminium-magnesium-silicon. It is one of the more popular alloys in its series, although it is not strongly featured in ASTM standards. It is typically formed by extrusion and rolling, but as a wrought alloy it is not used in casting. It can also be forged and clad, but that is not common practice with this alloy. It cannot be work hardened but is commonly heat treated to produce tempers with a higher strength but lower ductility.

Common Applications

Automotive Components
High Stress Applications
Transport Equipment
Marine Applications

Key Features

Higher tensile strength than 6061
Improved corrosion resistance
Strong anodising properties

Material Profile

Profile
Size Range
Metric Size Range (mm)
Imperial Size Range (in)
NZ (Availability)
AUS (Availability)
Manufacturing Method
Flat Bar
-
Custom
Custom
Indent
Indent
Extruded
Square Bar
-
Custom
Custom
Indent
Indent
Extruded
Custom
Custom
Custom
Custom
Indent
Indent
Extruded

Chemical Composition

Element Symbol Range %
Aluminium Al Balance
Silicon Si 0.7-1.3
Magnesium Mg 0.6-1.2
Manganese Mn 0.4-1.0
Iron Fe 0.50 max
Chromium Cr 0.25 max
Zinc Zn 0.2 max
Copper Cu 0.1 max
Titanium Ti 0.1 max
Others 0.15 max

Mechanical Properties

Metric Values Imperial Values
Tensile Strength Min 205 N/mm² 30000 psi
Yield Strength Min 110 N/mm² 16000 psi
Elongation Min 12% 12%
Hardness Min 70 BHN 70 BHN

Comparative Specifications

EN AW- Al Si1 Mg Mn

DIN 3.2315

BS H30

UNI9006/4

L-3453

Resources

Data Sheet

6082 Aluminium Data Sheet

PDF (47 KB)

/wp-content/uploads/2022/11/6082-Aluminium-Data-Sheet-.pdf

Blog

A Guide to the Grades of Aluminium: Choosing the Right Alloy

Resource

Engineering Metal Bar Manufacturing Methods

PDF (298 KB)

Download Our Catalogue Here

For our full range of products and services, choose the relevant catalogue.

This field is for validation purposes and should be left unchanged.

Quality Management

Quality materials, delivered to standard.

Kormax is ISO certified for ISO 9001, ISO 14001, and ISO 45001.
All Kormax products come with batch certifications.

Why Choose Us

As a fourth-generation family-owned business, Kormax brings over 75 years of Foundry and Engineering Metals experience to your project.

Kormax operates in various sectors across the world, utilising our leading engineering, manufacturing, and global distribution capabilities to offer world-class solutions for engineers.

Expert Advice

Trusted advice on metal and profile selection for your application

Unique Range

Unique range of quality products, in industry specific profiles and sizes

Top-tier Foundries

Global top-tier supply network with the ability to source specific sizes and metals

Supply Security

Custom supply options and to enhance your supply continuity

Quality Management

ISO Certified for ISO 9001, ISO 14401 and ISO 45501 ensures quality systems are in place

Competitive Pricing

With a wide supplier network, Kormax can balancing quality and value

Related Products

Aluminium 6061

Kormax Aluminium Alloy 6061 contains silicon to lower melting temperature and improve fluidity, and magnesium to improve strength and strain hardening ability. It is one of the most commonly found aluminium alloys with a medium to high strength and is heat-treatable. Often used for structural and aerospace applications, it has particularly good corrosion resistance to atmospheric conditions and very good weldability although reduced strength in the weld zone.

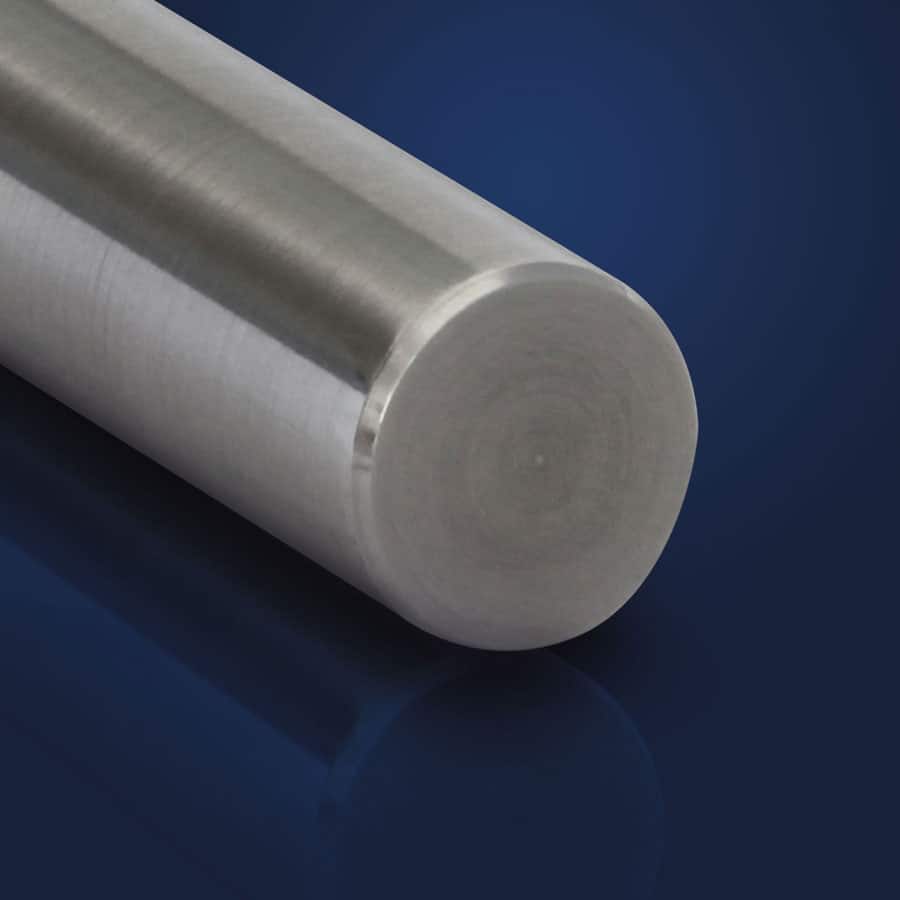

Aluminium 7075
